Electrical bicycle Himo C26. Manual

Notes for using

Obey traffic rules strictly

Preparation before riding

According to the regulations on the implementation of the road traffic safety law of the People's Republic

Whether the power circuit and lighting are good.

of China, e-bike rider must be at least 16 years old.

Whether the front and rear brake lever are

good.

When driving in the non-motorized lane, the maximum speed shall not exceed 15km/h;On roads

Whether the handlebars and front and

without non-motorized lanes, drive on the right side of the roadway.

rear wheels are in a tight state.Whether the

Don't cause injury by lending your bike to someone who can't handle it.

tire pressure is normal.

Passengers or goods shall be carried according to laws and regulations.

Riding in rain and snow, the braking distance will be extended, pay attention to slow down;Avoid

traveling in bad weather such as heavy rain.

Before riding, check the braking system and clean the reflector to avoid blocking.

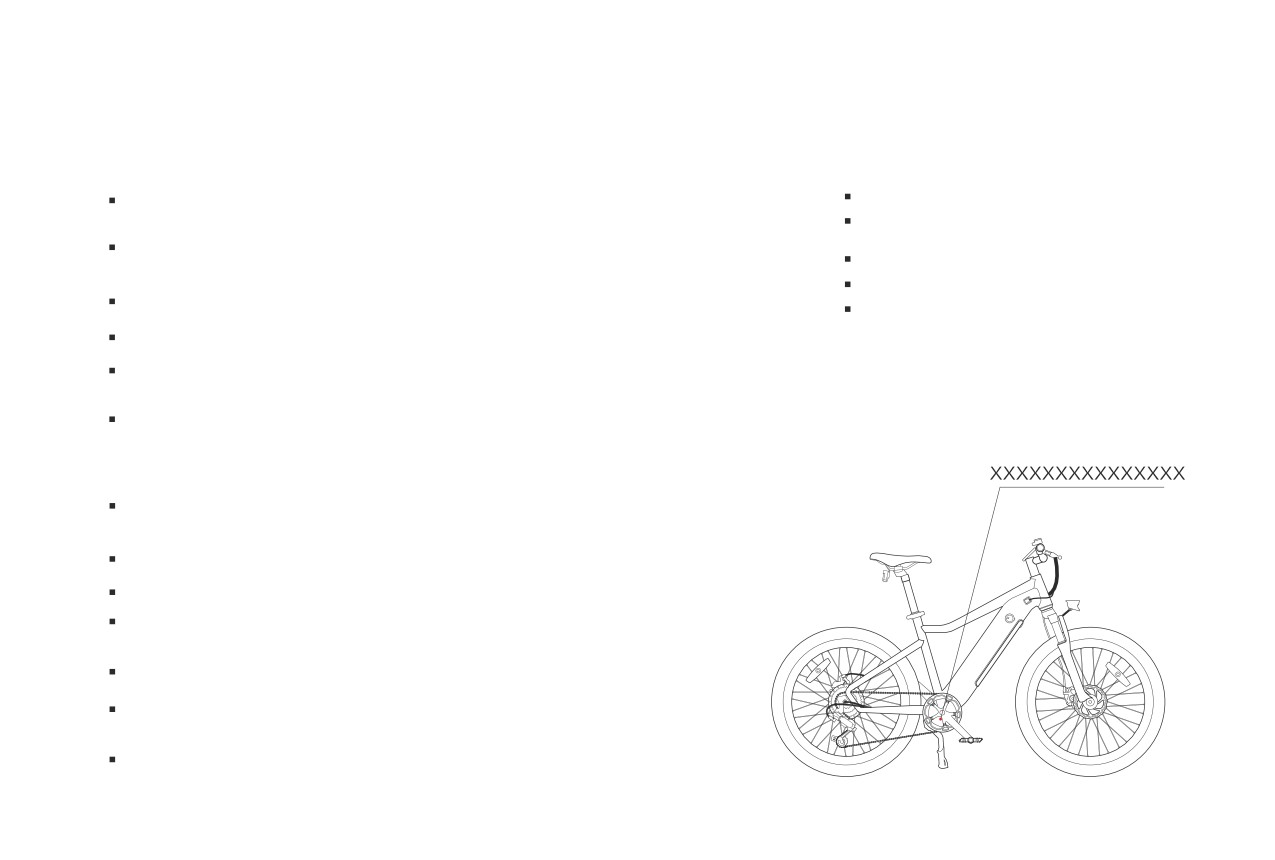

Bike coding position

Safe of using the product

Please strictly abide by the traffic laws and regulations, prepare helmets, protective

equipment and other protective equipment before riding, and pay attention to driving

safety

Do not ride with one hand or two hands away from the handle.

Do not park in building doors, evacuation staircases, walkways, and safety exits.

Do not charge inside residential building and park, should be far from combustible when

charging, please charge according to regulation time, charging time should not be too long.

Correct use and maintenance of batteries, old batteries can not be disassembled without

authorization, should be organized by the professional departments recycling. Know how

to use charger and warning terms, use original charger.

When adjusting the saddle position, be careful not to expose the safety mark line of the

saddle tube.

čThe code at the bottom of frameĎ

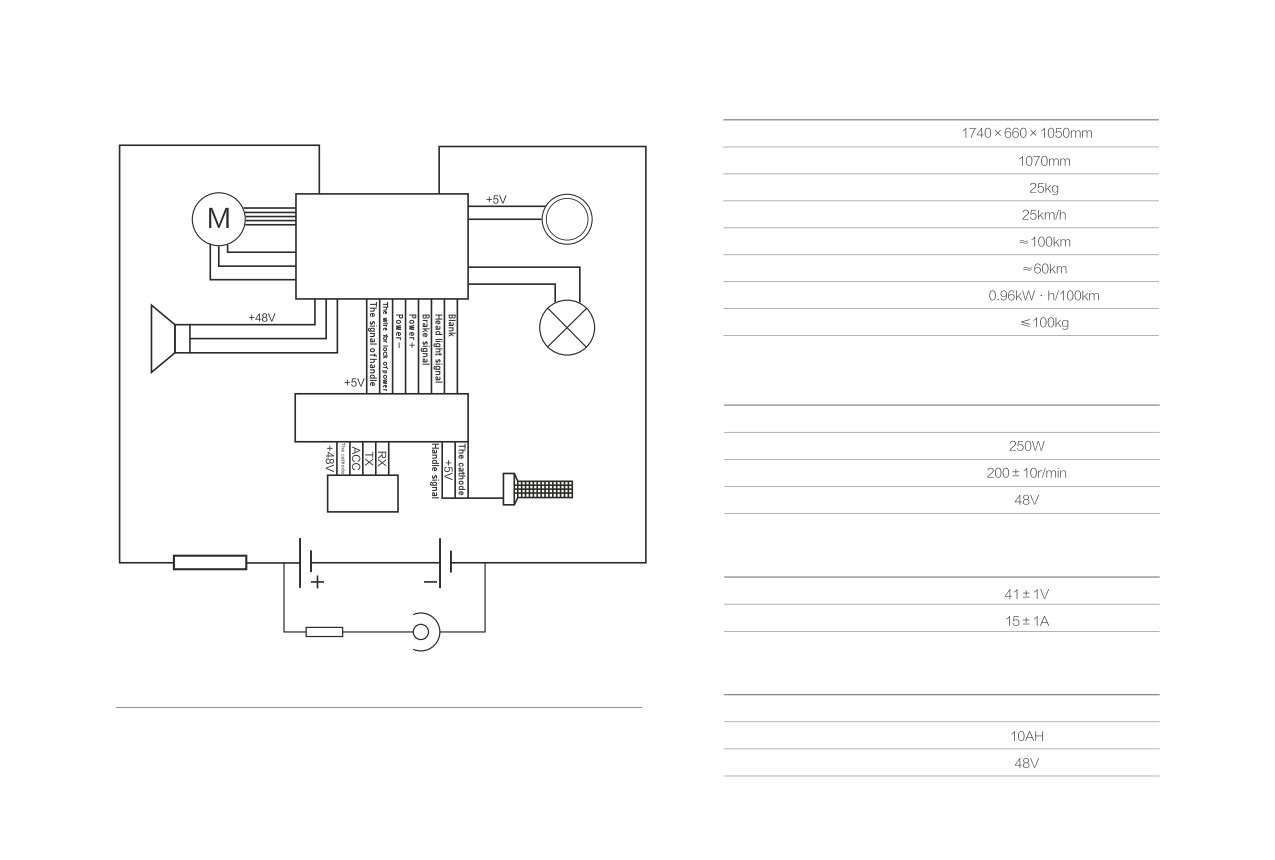

Electrical schematic

Main technical parameters of the bike

Dimensions

(L*W*H)

Front and rear wheel center distance

Motor

Booster sensor

Max weight

Power signal

Maximum design speed

The cathode

Assisting rang

Controller

Head light signal

The cathode

Electric range

Consumes electricityč100KMĎ

Loading weight

The cathode

Overspeed warning signal

Overspeed alarm

Head light

Motor Spec.

Brake sensor

Motor type

Brushless dc motor

Rated power

Knob

Rated speed

Display

Voltage

30A fuse

Battery

Controller Spec.

Under voltage protection

5Acharging fuse

Over current protection

Charger port

Battery Spec.

Battery type

Lithium ion battery

Under the condition of full power, the endurance is 75kg, the temperature is about 25¥, the environment of

flat road is still without wind, and the driving condition is measured at 15km/h uniform speed under the

Capacity

energy-saving mode. The actual endurance will be different due to factors such as load, temperature, wind

speed, road surface and operating habits.

Voltage

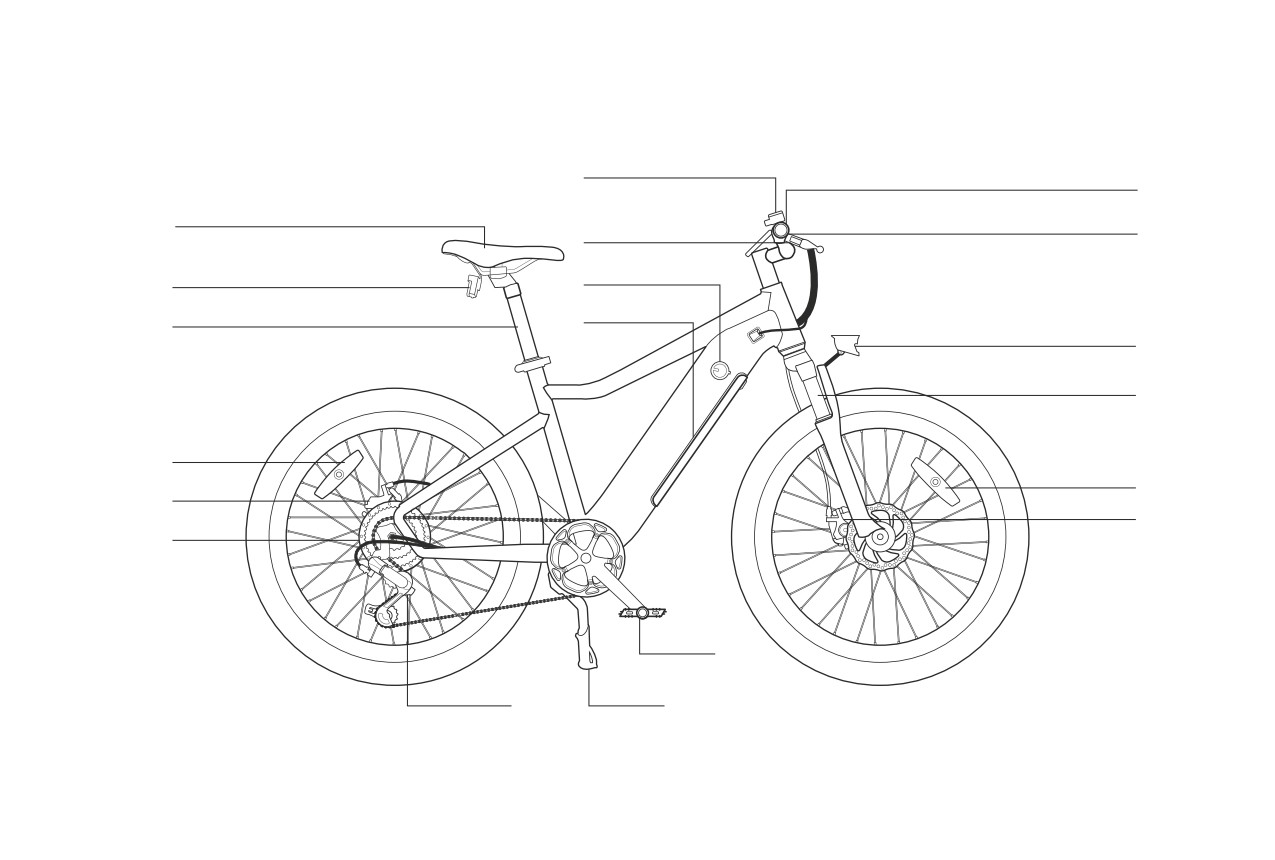

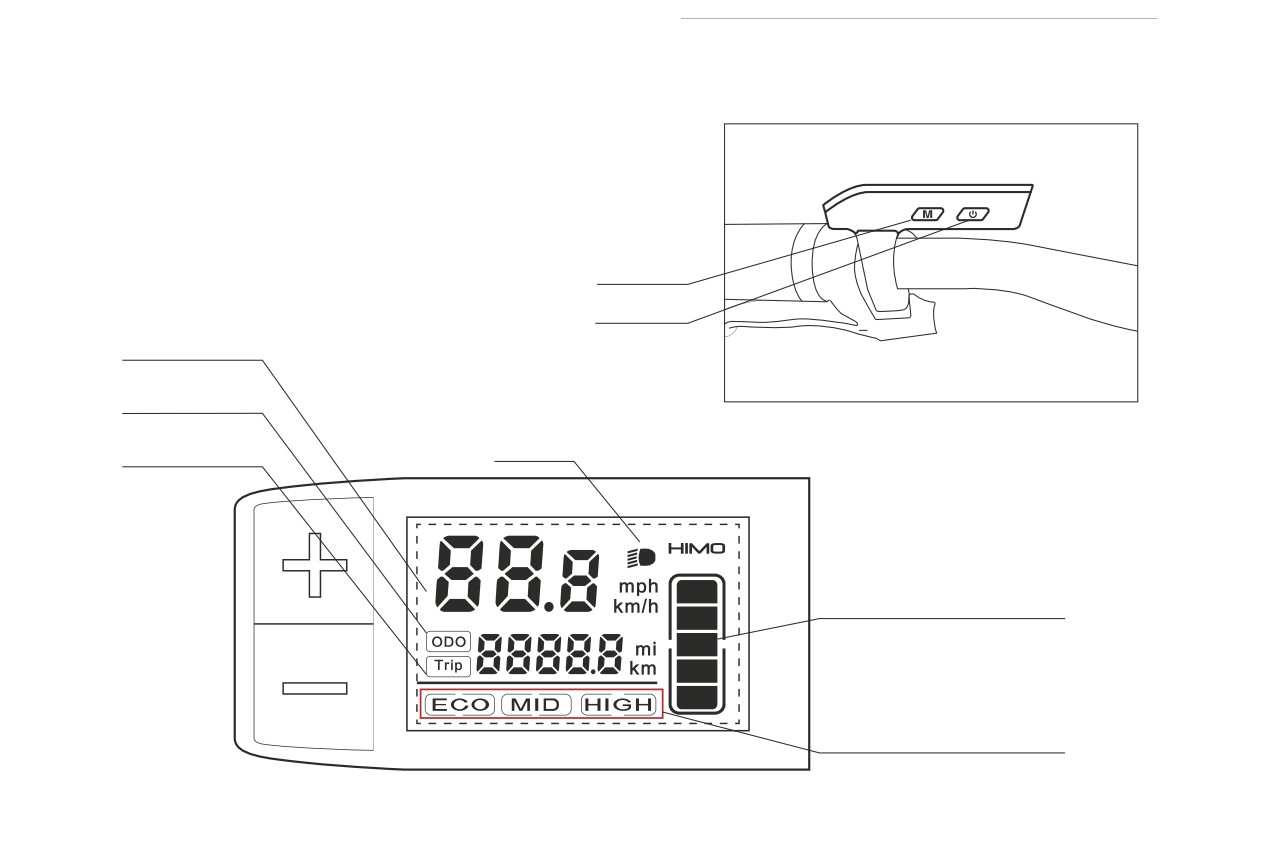

Get to know C26 quickly

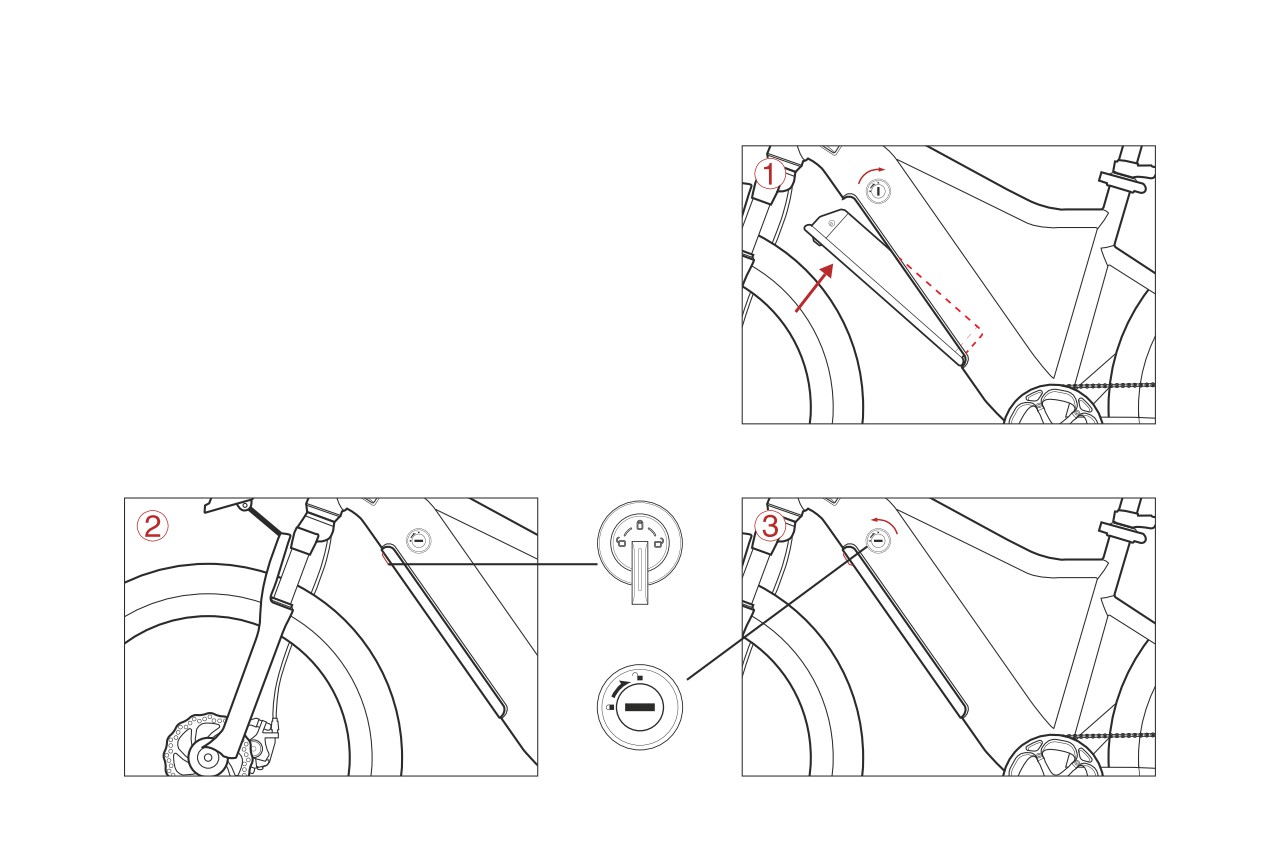

Battery mounting and locking

1.Insert the key to rotate to the open state,put the battery into the

predetermined position of the body,push it upward until the machine

makes a clear sound and the battery is energized.

2.Push the battery safety buckle to the tight position.

3.Turn key to lock and pull out.(the key cannot be pulled out when the battery lock is open).

Battery out

Insert the key to open the battery lock,hold the battery

with your hand and push

the safety clasp to remove

the battery.(please be sure

to hold the battery with

(Wiggle the wheels to increase the bottom space for easier battery

your hand when taking out

the battery to avoid the accident

of touching the ground)

installation and removal)

Security card buckle

Battery lock

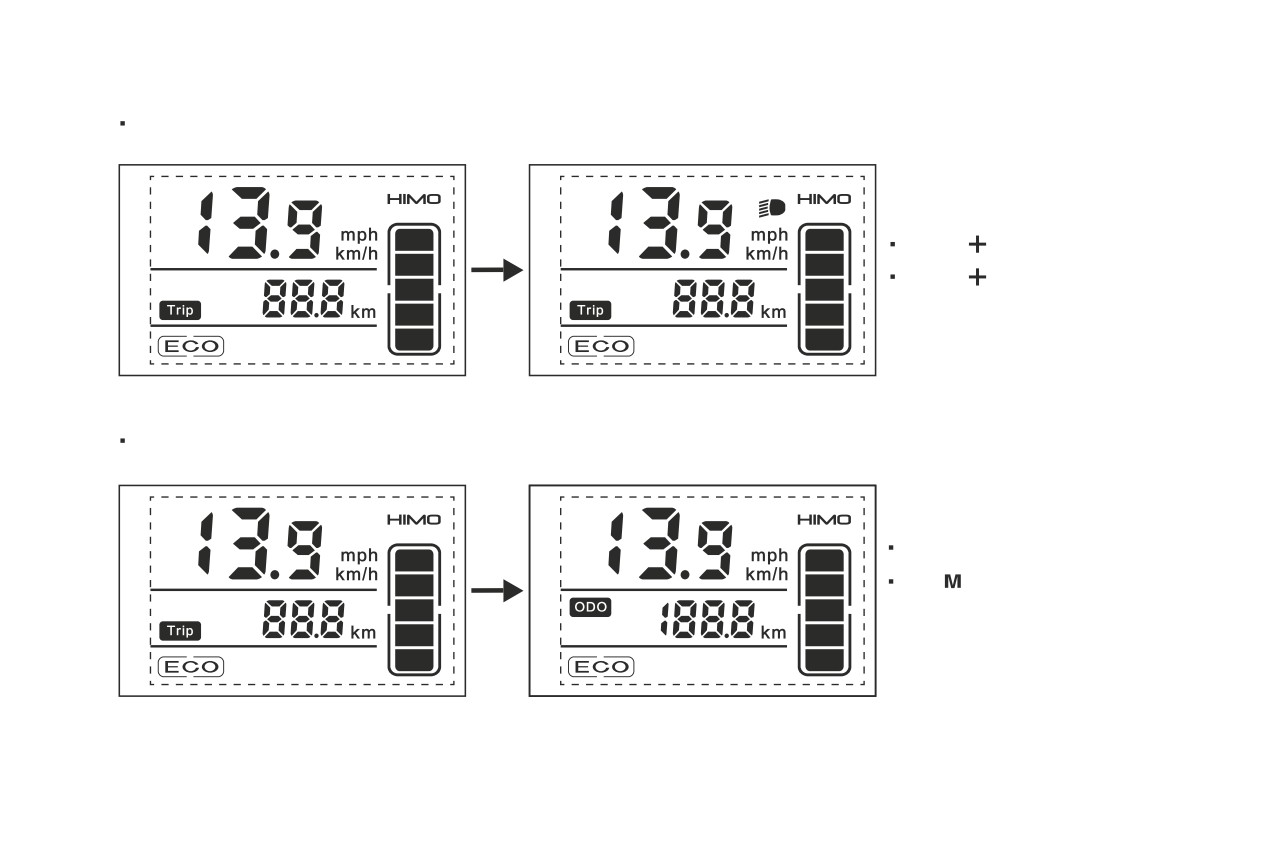

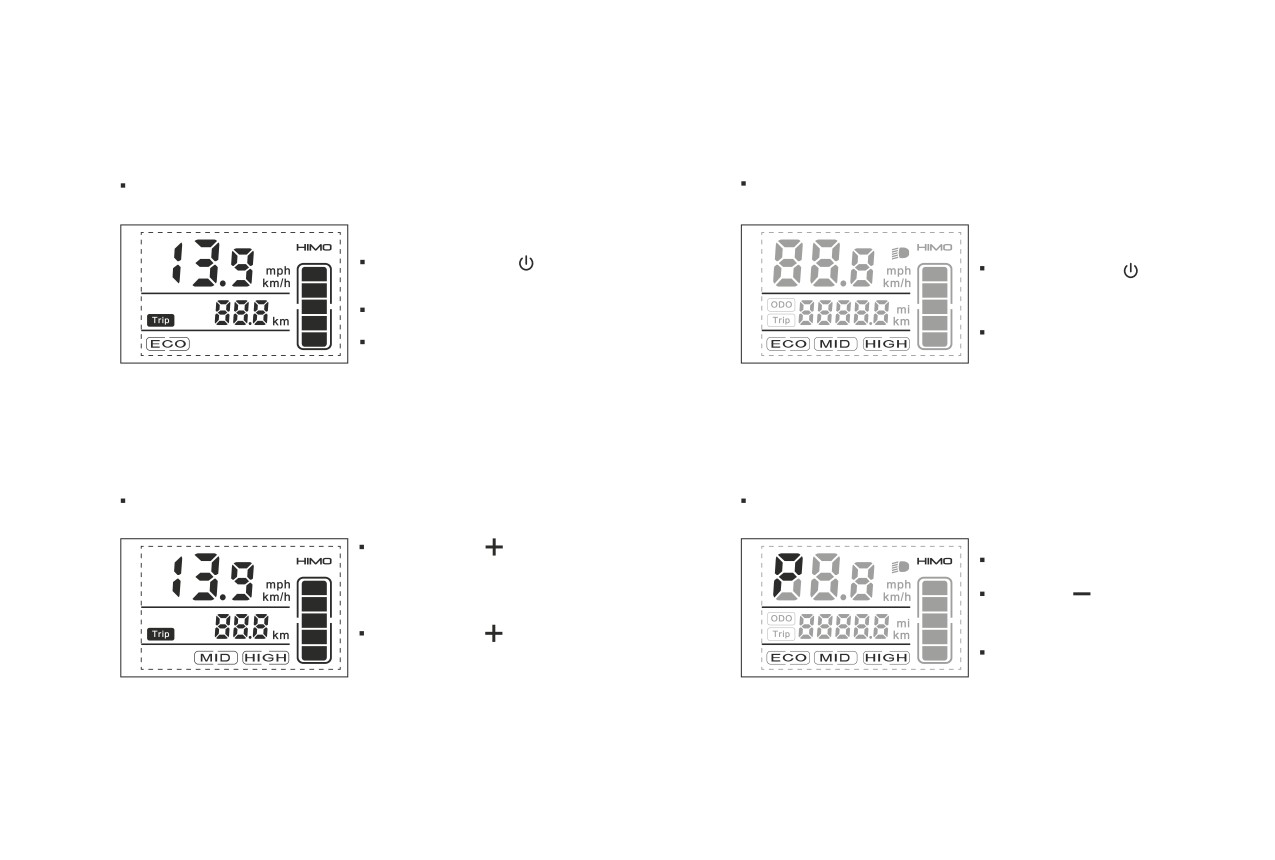

Electric assist riding

Normal riding

Long press the button for 3 seconds to start the

Long press the key

for 3 seconds to

electric bike;

close the electric bike;

The first default gear is "ECO" assisted cycling mode;

Pedal riding

Pedal riding speed reaches 5KM/H;

Electric riding

Parking mode

Press the button

to switch to the medium speed gear

In the startup state;

of"MID" electric cycling mode;This mode can be started

by twisting the crank or the speed exceeds 5km/h.

Long press

3 seconds to switch

mode to "P",

Press the button

to switch to the high-speed gear of

"HIGH" electric cycling mode;This mode can be

Open parking mode.

started by twisting the crank or the speed exceeds

5km/h.

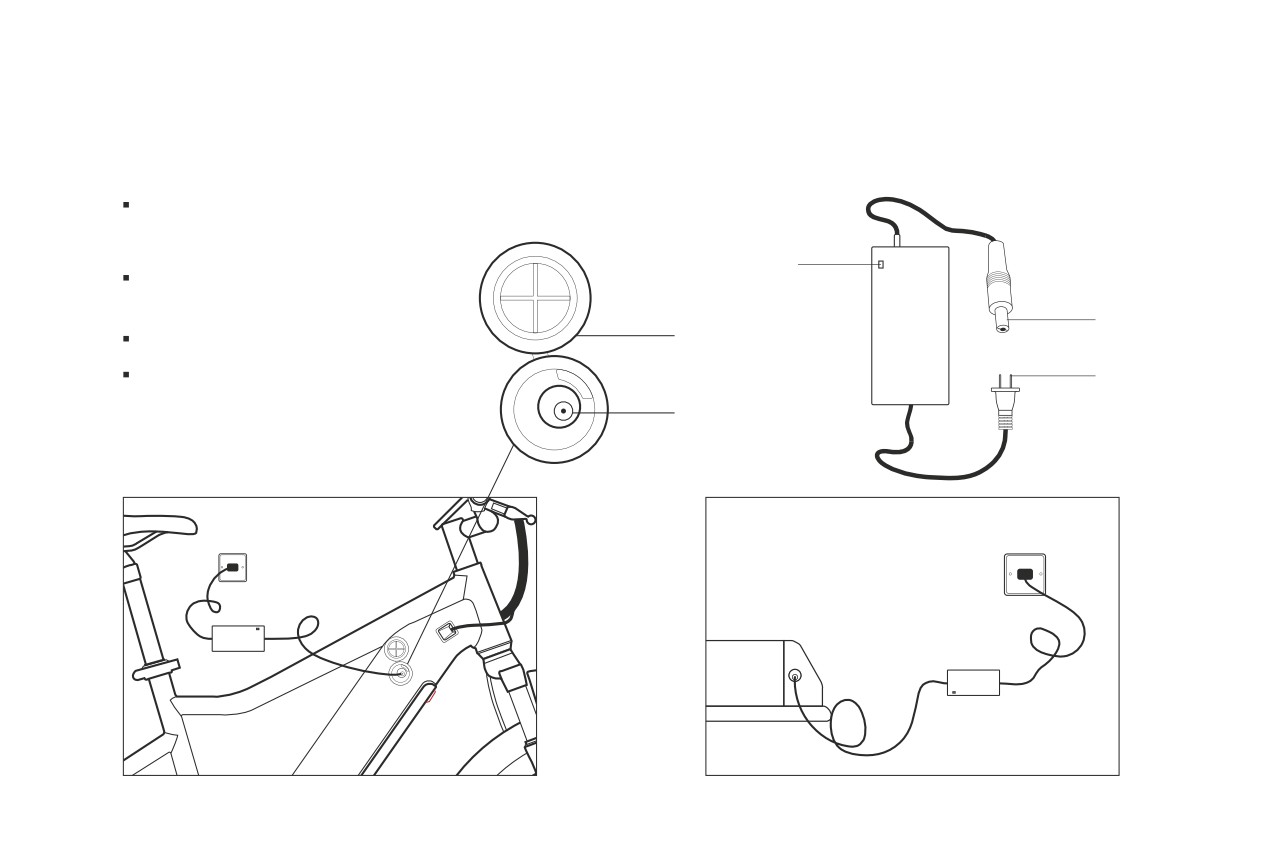

Battery charging

Daily charge

Charger

First plug the power supply pin of the charger into the

charging port ofthe battery, and then plug the power

supply pin into the power supply.

Indicator light

Under charging state, the indicator light of charger is

red,and when fully charged, it is green.

Power supply pin

Soft cap

Unplug the power plug after charging.

Power supply pin

If the battery is charged in the bike, please turn off

the instrument power.

Charging port

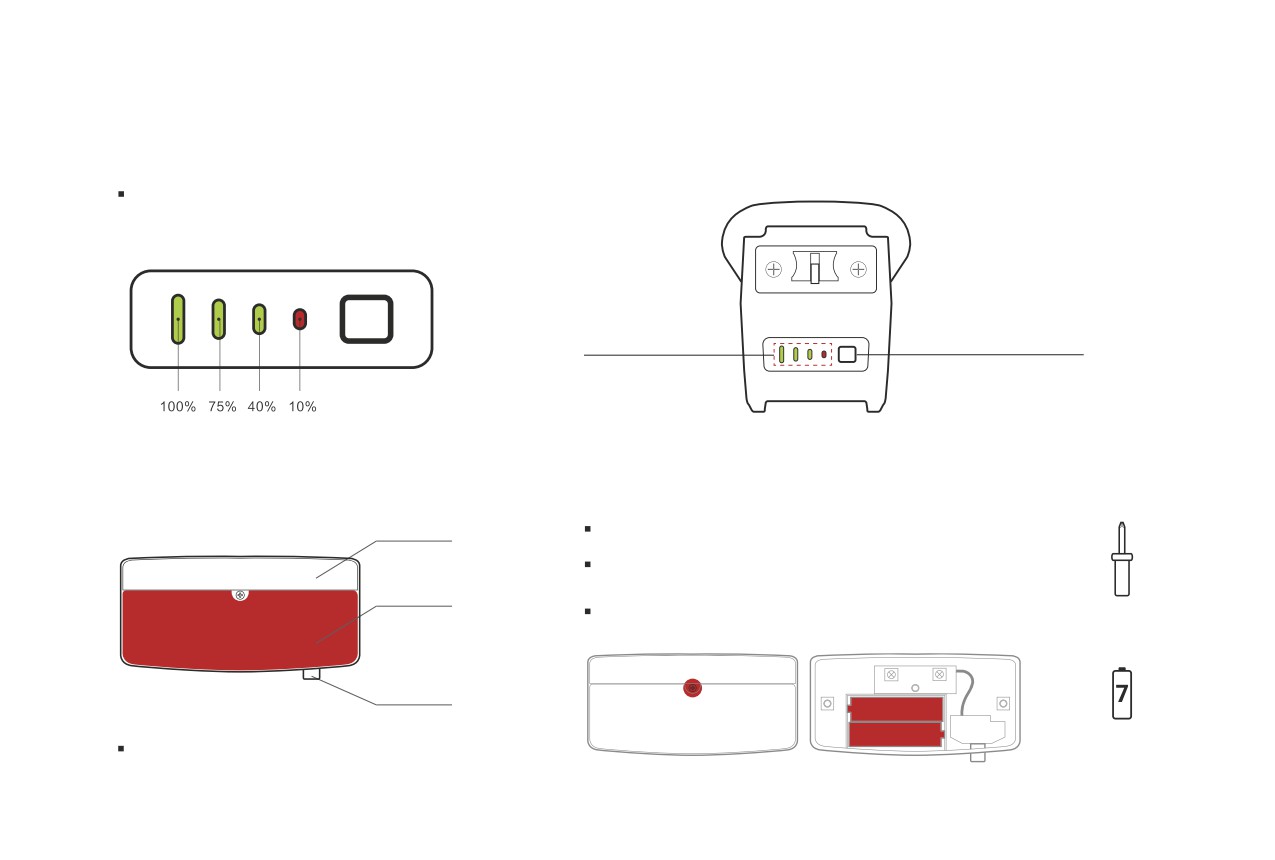

Check battery capacity

When your battery is in the state of charging or not

charging, press the power display button to display

the current remaining power.

Power indicato

Battery capacity button

Taillight opening and maintenance

Change battery

Tail light

Prepare 1 suitable phillips screwdriver, 2 no. 7 batteries.

Remove the rear lamp, unscrew the front panel screw, open the rear housing,

and replace the battery.

Rear reflector

Buckle the rear shell, screw well, install it on the fixing plate, and

Cross screwdriver

replace the battery.

Switch

No.7 battery

Taillight is designed as an independent switch.

2 pcs

Press the switch when using.

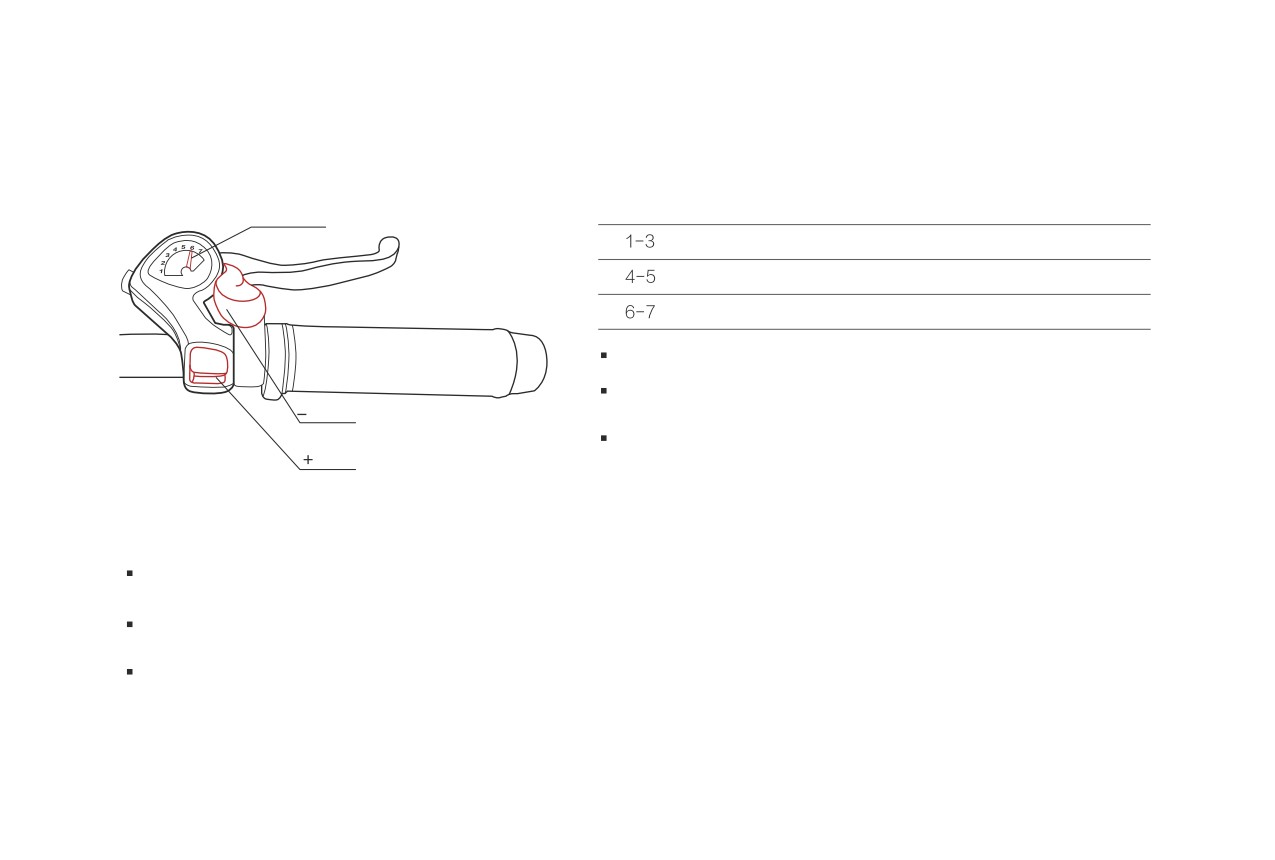

Transmission using

Transmission diagram

Gear

Power

Speed

Gear pointer

Rlax

Slow

Moderate

Hard

Fast

To speed up, start with a lower gear and shift to a higher gear as you speed up

When going uphill, the speed will decrease,the gear will be lowered to maintain a certain pedal

Shift down

strength

Downwind will speed up, increase gear to maintain a certain degree of pedal strength

Shift up

The above is cycling advice, according to personal habits to reasonable use of gear

When using the transmission system, also pay attention to the following details

When using a speed change system, try not to skip gears, which can easily damage the transmission.It is not possible to change two gears at a time above,

should be a level of adjustment, can better protect the transmission system.

Do not reverse the transmission system when the bike stops running, or when it is going downhill. This will not only be bad for the transmission system, but also may

cause accidents.

If it is their transmission fault, or gear is not accurate situation, will affect the performance of the transmission, at this time should be timely to the professional

bike shop maintenance, in case of aggravation of the fault.

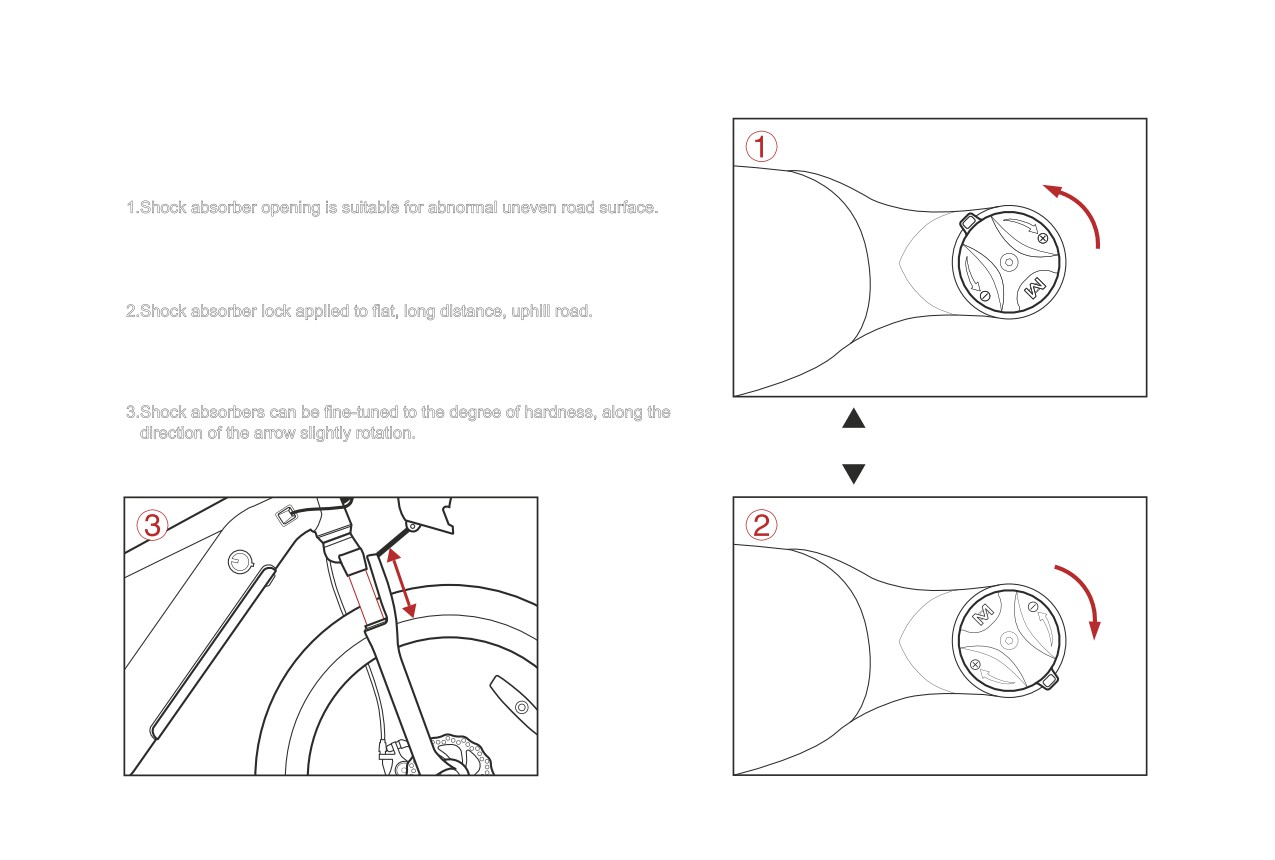

Damping adjustment

Shock absorber indicato on

1.Shock absorber opening is suitable for abnormal uneven road surface.

The front fork is stretched up and down under the force, which can alleviate the impact of

the protrusion on the vehicle and the rider, better protect the bicycle parts, and make riding

more comfortable and easy to control.

2.Shock absorber lock applied to flat, long distance, uphill road.

When the road is in good condition or going uphill, we need to turn off the shock absorbers.

Otherwise, the shock absorbers will stretch up and down to absorb a large part of the force,

which will make riding more difficult.

3.Shock absorbers can be fine-tuned to the degree of hardness, along the

Turn counterclockwise to open the shock absorber

direction of the arrow slightly rotation.

Vibration absorber fine tuning can be more accurate to adapt to the different riding habits of the rider.

Turn clockwise to lock the shock absorber

About batteries

Note before use of lithium battery

Before use, confirm that the battery model is the original battery of the whole bike, do not use any other brand of battery.

Check the appearance of lithium battery intact, no damage, leakage, heat and water, smoke and other obvious phenomena.

In order to ensure the safety of transportation, the battery's output power is about 30%. Due to the self-consumption during the transportation

and storage cycle, the battery is low or no electricity in the first use. This is a normal phenomenon.

Using the environment

The best operating environment is 10¥-45

At low temperature, available capacity of lithium battery will decrease to different degrees. The specific reference degree is as follows:

The available capacity is about 70% at -10¥, 85% at 0

¥ and 100% at 25¥.If the battery has odor, heat, deformation and other abnormal

conditions, please stop using immediately, away from the battery and contact the after-sales department.

Warning

The battery is not a part that can be repaired by the user. If there is any abnormal

phenomenon, please contact the after-sales department for maintenance.

Disassembling the battery without permission will not be covered by the three-pack

policy and may cause the battery to generate heat, smoke, fire or explosion.

Charger port of the battery

Use the original charger to charge the battery. Do not use other brand or model charger to charge the battery.

Please charge the battery at the ambient temperature of 10¥ ~ 40

¥ to ensure that there are no flammable substances around and

good ventilation.

Charging time indicates that if the charging time of the battery is less than 12 hours, overcharging will affect the battery life and there are

safety risks.

In the early stage of charging, the electric quantity rises quickly, while in the later stage, it is the procedure set for charging safety, which is the

normal situation.

When charging in winter, the outdoor temperature is relatively low. When the environment is below 0¥, the battery will stop charging.

This is a normal phenomenon.

Outdoor charging is strictly prohibited in bad weather.

During the charging process, the charger has a temperature rise effect, and the surface temperature is relatively high, which is a normal

phenomenon. Please feel free to use it, and pay attention to avoid children touching it.

Storage environment

When the battery is placed on the bike, it will constantly consume the battery power. After the bike is placed for a period of time, the meter

shows that the decrease of the battery power is normal.

Please store the battery in the ambient temperature from 0¥ to 25

¥. Do not store the battery in an environment higher than 45¥,

or it will cause irreversible

capacity decay of the battery.If the bike is not in use for a long time (such as winter, summer or other special circumstances), the battery

must be taken out and stored separately and charged regularly. Otherwise, the battery may be completely exhausted and irreversible damage

may occur. For such problems, the battery fault will not be within the scope of three guarantee.

The best storage capacity for a battery is 50%. Long-term storage of less than 10% or more than 90% of the battery will lead to irreversible

capacity decay.

Avoid storing batteries in hazardous locations. Falling may cause uncontrolled damage to the battery interior and may cause battery leakage,

heat, smoke, fire, or explosion.

Maintenance and repair

Regular bike inspection

Whether the fastener is locked or not, whether the joints of all parts are normal:

Whether the tread pattern of the tire is worn and cracked, whether the front and rear tire pressure is appropriate,

Whether the drive system is smooth;

Whether the brake system is working properly.

Bike storage method

When this product is not in use for a long time, please do not store it in outdoor environment, under strong light

and below zero, and keep it at least 2m away from heat source (heating equipment, etc.).

Store in a dry, clean, well-ventilated indoor environment where the temperature is 10¥ ~ 45

¥ and the relative humidity is no more than 90%.

If you do not use the bike for a long time, pay attention to regular charging (generally about two months apart) to maintain battery performance;

This product should not contact with corrosive liquid to avoid any mechanical impact and heavy weight.

The transportation

Should not be subjected to severe mechanical impact, exposure to the sun, rain, chemical corrosive substances and harmful gases during

transportationĠ

During the process of loading and unloading, the products should be handled with care and be strictly protected against throwing, tumbling

and heavy weight.

Maintenance and cleaning instructions

Do not flush with water to avoid the risk of accident caused by wet internal electronic components and wiring;

Please use neutral cleaner, wipe paint or plastic parts surface dirt with a cloth, and then use dry cloth to wipe;

Please use lubricating oil to wipe the metal parts of the bike body for maintenance;

Do not oil the brake parts to avoid causing brake failure and dangerous.

After-sales service

According to <Product quality of the People's Republic of China>&<Law of the People's Repulic of China on the

protection of user's right and interests>and the regulation of after sales service,the after sales service for HIMO

electric scooter is as below:

Free reason in return within 7 days

If the goods are rejected or intercepted due to non-quality reasons after shipment, the user shall bear the round-trip freight.

Within 7 days after receipt, because of quality problems, in the case of does not affect the goods in good condition (affect the situation of the

goods in good condition including but not limited to: guarantee certification and invoice lost, artificial damage, maintenance and protection

label damage, product appearance, or the outer packing damage, 10 km mileage super, the accessory missing accessories, etc.).Return

freight and wear and tear shall be borne by the customer.If the packaging is lost or damaged, the customer shall bear the original

packaging cost (excluding the packaging cost incurred by logistics during return).

If the goods are returned or replaced due to quality problems within 7 days after signing and receiving, the return freight shall be borne by

the merchant. Offline channel purchase products do not support seven days without reason return.

No return for cycling more than 100 km;

It can be replaced within 15 days due to quality problems;

Beyond 15 days, within the warranty period, can be repaired.

The warranty policy

During the warranty period, HIMO official customer service center will provide you with free after-sales service.If the service period and scope of

"three guarantees" are exceeded, HIMO official customer service center will provide you with paid after-sales service according to the local market

situation and maintenance price.

If the product you purchased cannot drive due to quality problems, the HIMO official customer service center will provide you with maintenance

services.

The warranty period of online sold products shall start from the date of delivery receipt signed by the user.

Non-warranty policy

The following circumstances are not within the scope of warranty service, we will provide you with paid after-sales service.

Three guarantees of validity have been issued;Missing or changed invoice;Damage caused by force majeure.

Repair, misuse, collision, negligence, abuse, accident, modification, incorrect use of this product without HIMO's approval, frame serial

number destroyed.

The model of "three guarantees" certificate is inconsistent with or changed from the model of the repaired product;Do not follow the instructions

for proper maintenance.

Due to improper use, direct impact deformation;External force collision or car crash resulting in parts damage;Puncture and air leakage caused

by spikes, glass, sharp small stones, etc.Consumable wear and tear is not replaced in time, causing damage to other parts;The surface of the

cushion is scratched;Violence or man-made damage to the frame, are not covered by the warranty.

The surface of the paint on the frame and parts may be corroded due to rain, collision, friction and other external environmental factors. The

paint may fall off,or the storage place is not good. The surface of the paint may flake after long-term use, and the metal surface or plastic parts

may fade naturally.

Exceeding the scope of use, such as extreme road conditions, performing special effects, climbing stairs, jumping and other abnormal riding

actions, and causing damage to parts or functional failure;

Due to over-limit use caused by deformation or cracking of the frame, also does not belong to the scope of warranty.

Note: HIMO electric vehicle after-sales service policy is final interpreted by Shanghai HIMO electric technology co., LTD.

Warranty exemption scope

If the product is sold in the following circumstances, it is not within the scope of warranty service, and users

shall pay for maintenance and related services:

The HIMO guarantee service standard for electric vehicle parts exceeds the specified service period and scope.

Failure or damage of the HIMO electric vehicle product caused by the user's failure to properly use, drive, maintain and adjust the HIMO

electric vehicle product according to the instructions.

Products sold due to rain, snow immersion, smoke, drugs, chemicals corrosion caused by damage or natural product failure or damage.

Loss is not covered by the warranty.And failure or damage caused by force majeure (including but not limited to earthquake, typhoon, fire,

flood, social event, group event, violent crime, etc.) of the products sold.

The battery was not normally used and maintained by the user, and the battery was placed for a long time (the battery was connected to the

vehicle for a month, and the initial power of the battery was stored separately for less than 50% and more than 3 months), and the battery was

not charged in time, resulting in battery feeding and undervoltage that could not be repaired.

The user refits, disassembles, repairs or destroys the whole product and the normal use of the parts.

The HIMO electric vehicle parts are damaged or the circuit or circuit configuration is changed without permission by the user using

non-original parts.

Product failure or damage caused by human factors such as car crash, car crash, overload and overspeed.

There is no valid three-guarantee voucher, after-sales service card or purchase invoice, voucher or card number inconsistent with the product.

Responsibilities and obligations

Three guarantee policy

Item

Allowance for depreciation

The warranty period

From the date of receipt and signature, the HIMO authorized

Battery

after-sales service center will provide after-sales service for

NPOUI

you within the warranty period

Natural open welding, off welding, fracture, deformation, paint off

Frame Fork

NPOUI

due to poor manufacturing quality problems

Hub,Freewheel,Chainwheel,Crank,

Distortion, breakage, fading, blistering, cracking, paint detachment,

BB Set,handlebar,Folding stem,

NPOUI

etc due to the poor manufacturing quality problem

Seat post, Head set, Wire

Display,Controller , Head light,

Performance failure or quality problem caused by the

product and cannot be repaired

NPOUI

Charger

Tire, Inner tube, Saddle, Chain,

Brake plate, Brake wire,Grip,

Consumables are

Quick-wear part

not guaranteed

Reflector ,Pedal, and accessories.

Solutions of trouble

Problems

Reasons for the problem

Solution way

When the power is turned on ,

Bike is not powered

1.Check whether the battery plug is properly inserted

the bike can not be powered on

2. Battery undervoltage, charge the battery

Turn on the power and turn on

1.The bike is in the brake status 2.The speed did not reach 5km/h

1.Whether the brake lever is on the brake

the handlebar,motor does not start

3.In the parking status

4. Startup switch fault

2.Manpower riding to 5km/h

3.Remove P mode 4.Please contact after-sales service

1.Battery undercharge 2.Tire pressure deficiency

1.Check if the charger damage or not

Insufficient mileage

3.Frequent brake start 4.Battery aging or normal

2.Check tire pressure before using

5.Low ambient temperature,Battery capacity attenuation

3.Develop good driving habits 4.Replace the battery

5.Belong to normal phenomenon

1.Check if the plug is loose

1.The charger is not plugged in properly

Battery fails to charge

2.Wait for the battery to return to charging temperature

2.Battery temperature is too low

3.Wait for the battery to return to charging temperature

3.Battery temperature is too high 4.Battery under voltage

4.Contact with cugtmer sewice

Instrument no display

1.Check that the battery is plugged properly

1.No power supply for bike 2.Battery under voltage

2.Battery undervoltage, charge the battery

3.Instrument faults

3.Contact after-sales service to replace damaged parts

Model name

Electric mountain power bike

The name and content of harmful substances in the product

Hazardous substance

Parts name

Display

Headlight

Taillight

Battery

Control ler

Charger

1.This form is prepared in accordance with the provisions of SJ/T 1136

O:Indicates that the content of the hazardous substance in all homogeneous materials of the part is below the limit

set by GB/T 26572.

X:Indicates that the content of the hazardous substance in at least one homogeneous material of the component

exceeds the limit specified in GB/T 26572.
