NVIDIA GeForce RTX 2070 SUPER. User Guide (2018)
TABLE OF CONTENTS
01 INTRODUCTION
3
About This Guide
3
Minimum System Requirements
4
02 UNPACKING
5
Equipment
6
03 Hardware Installation
7
Safety Instructions
7
Before You Begin
8
Installing the GeForce Graphics Card
8
04 SOFTWARE INSTALLATION
12
GeForce Experience Software Installation
12
05 CONFIGURING NVLink
14
06 CONFIGURING HDMI
16
Enabling Audio Over HDMI
16
07 FEATURES
17
08 Compliances
19
UNITED STATES Federal Communications Commission (FCC)
20
Underwriters Laboratories (UL)
21
Canada
21
EUROPEAN UNION
21
JAPAN
22
KOREA
24
Australia/New Zealand
25
Taiwan
26
China
27
India
28
INTRODUCTION
01
INTRODUCTION
Thank you for choosing the NVIDIA® GeForce RTX™ 2070
SUPER graphics card.
The GeForce® RTX 2070 SUPER is powered by the all-new
NVIDIA Turing™ architecture to give you incredible new
levels of gaming realism, speed, power efficiency, and
immersion. This is graphics reinvented.
About This Guide
This installation guide discusses the installation and operation of the NVIDIA
GeForce RTX 2070 SUPER graphic card.
|
3
Introduction
Minimum System Requirements
> Motherboard
01
PCI Express® or up to PCI Express 3.0-compliant motherboard with one
dual-width x16 graphics slot.
> System Power Supply
Minimum 650 W or greater system power supply with one 6-pin and one 8-pin
PCI Express supplementary power connectors.
> Operating System
• Microsoft® Windows® 10, 64-bit (v1809, November 2018 or later)
• Microsoft Windows 7, 64-bit
• Linux®, 64-bit
> System Memory
8 GB system memory (16 GB recommended)
> Internet connection for driver installation
> 1.5 GB of available hard disk space
|
4
02
UNPACKING
Prior to unpacking your new NVIDIA GeForce RTX 2070
SUPER graphics card, it is important to make sure you meet
all the system requirements listed on page 4 for a smooth
installation.
Be sure to inspect each piece of equipment shipped in the
packing box. If anything is missing or damaged, contact your
reseller.
|
5
Unpacking
Equipment
The following equipment and documentation are included in the GeForce RTX
02
2070 SUPER graphics card box.
Quick Start Guide
Support Guide
DisplayPort to DVI-D Dongle
GeForce RTX 2070 SUPER Graphics Card
One 6-pin and
one 8-pin power connector
GeForce RTX
NVLink™ Connector
HDMI (High-Definition
Multimedia Interface)
Connector
DisplayPort
Connectors (Qty 3)
USB Type-C™
Connector
GeForce RTX 2070 SUPER Graphics Card
|
6
03
HARDWARE INSTALLATION
Installing the NVIDIA GeForce graphics card hardware
involves opening your computer. RTX 2070 SUPER Follow all
the safety instructions provided here to ensure that there is
no damage to you, your computer, or the graphics board.
Safety Instructions
To reduce the risk of fire, electric shock, or injury, always follow basic safety
precautions.
Note: All hardware must be installed prior to installation of the drivers.
> Remove power from your computer by disconnecting the AC main source
before installation.
> Do not operate this product near water or when your hands or body are wet.
> Do not place this product on soft surfaces that could block the ventilation slots
and cause overheating.
> Do not place this product near a heating register or radiator.
> Place this product securely on a stable surface. Serious damage to this product
may result if it falls.
> Do not allow anything to rest on the power cord. Do not place this product
where a person can step or trip on the power cord.
|
7
Hardware Installation
Before You Begin
The GeForce RTX 2070 SUPER graphics card is a PCI Express 3.0 ×16 graphics
03
card. Your computer may already have a graphics card installed in the PCI
Express slot. If so, you will need to remove that graphics card and replace it with
the GeForce RTX 2070 SUPER graphics card.
If you do not have a graphics card, this means that your motherboard has on-
board graphics (there is a graphics chip installed on your motherboard or
integrated in the motherboard chipset). If this is the case, there is no action that
needs to be taken before installing your new graphics card.
Use the RTX 2070 SUPER graphics card with UL Listed ITE Personal Computer
(PC)/Server.
Installing the GeForce Graphics Card
Because there are so many different computer systems on the market, the
procedure to install the GeForce RTX 2070 SUPER graphics card can vary from
system to system. Use the following instructions as a guideline and consult the
documentation for your computer system for any further information on your
individual system.
Note: It is important that all power to the computer be disconnected before you install
the graphics card.
Discharge your body’s static electricity by touching a grounded surface before
touching the graphics card. A grounded surface is the computer chassis, or some
other surface you know to be grounded.
ATTENTION: If your system has been running for a while prior to opening the panels, it is
!
very important that you wait until the graphics card in your system has cooled before
taking the card out of the system. Graphics cards get very hot when they have been
operating for any length of time.
Use the following procedure to install the GeForce RTX 2070 SUPER graphics
card into your computer system.
1 Turn off your computer and monitor and disconnect the power cord.
Depending on your computer system, you may need to disconnect the cable
going to the back of your system. Mark the cables so you can make sure you
reconnect them properly.
|
8
Hardware Installation
2 Open your computer by removing the cover/side panel. Refer to your
computer documentation from the original manufacturer for assistance.
03
3 Remove any existing graphics card (if there is one). Save hardware (such as
screws and brackets) to use when installing the NVIDIA graphics card.
4 Remove two adjacent slot covers if you do not have a graphics card installed.
Remove two adjacent slot covers that
corresponds to the PCI-Express slot you
are installing the GeForce RTX 2070
SUPER graphics card in.
Note: The GeForce RTX 2070 SUPER card is double-wide and requires removing two
slot covers.
5 Plug the GeForce RTX 2070 SUPER graphics card into the Primary PCI
Express x16 slot on your motherboard. This is often the slot closest to the
CPU but may be the second or third slot. Look for the slot labeled ×16. It will
likely be the only PCI Express slot with a retention lever on the end of the slot
or the one closest to the CPU.
Install your first GeForce RTX 2070 SUPER
graphics card into the Primary PCI
Express x16 slot.
The RTX 2070 SUPER graphics card
should be installed with the bracket facing
the side of the computer.
Note: It is recommended that you install the graphics card into the primary PCI Express
x16 slot. If you install the graphics card into the secondary slot, your system may not
recognize the graphics card and there will be nothing displayed on the monitor.
Also note that on some motherboard SBIOS, the physical location of the primary slot can be
configured when there are more than one PCI Express x16 slots.
|
9
Hardware Installation
If you are installing additional RTX 2070 SUPER graphics cards for an NVLink
configuration, continue with step 6. If you are only installing one GeForce
03
card, go on to step 7.
6 Install a second GeForce RTX 2070 SUPER graphic card (NVLink
configuration).
Install the second GeForce card into the outer most PCI Express x16 slot on
the motherboard.
Connect the two cards together using the GeForce RTX NVLink Bridge (3-Slot
or 4-Slot).
Note: GeForce RTX NVLink Bridge can be found on www.nvidia.com..
2-way SLI: Install your second
GeForce RTX 2070 SUPER
graphics card into the outer PCI
Express x16 slot (the outer slot is
the one farthest away from the
CPU).
Connect the two cards together
using the GeForce RTX NVLink
Bridge.
7 Connect a 6-pin and 8-pin power connectors from the power supply to the
power connectors on the top edge of the GeForce RTX 2070 SUPER graphics
card. Note that the connector and socket on the graphics card have a unique
shape and connect one way only.
GeForce RTX 2070 SUPER graphics card
requires one 6-pin and one 8-pin
PCI Express power plugs from the
system power supply.
Reinstall the cover on your computer and reconnect any cables that you
removed earlier in the installation.
|
10
Hardware Installation
03
DisplayPort connectors (Qty 3)
HDMI (High-Definition Multimedia
Interface) Connector
USB Type-C Connector
|
11
04
SOFTWARE INSTALLATION
With the hardware installed, it is now time to install the
NVIDIA GeForce Experience™ software and the graphics
driver.
GeForce Experience Software Installation
1
Download and install GeForce Experience software.
Download Now.
• Accept the NVIDIA software license agreement by selecting Agree and
Continue. GeForce Experience software begins to install.
• Select Close to finish the installation.
2
Optimize your installed games.
• Open GeForce Experience and click Scan for Games and click OK to scan
your installed games.
• Click on Optimize All to optimize your game settings.
3
Install the latest drivers.
• Open GeForce Experience and select the Drivers tab.
• Select Download Driver. Your GPU driver begins to download.
• Select Express Installation when the download finishes. GeForce
Experience begins to install the graphics driver.
Note: It may take several minutes for the installation to take place. Your screen may
go blank for a few seconds one or more times during installation. This is normal.
|
12
Software Installation
• Click CLOSE when the driver install completes.
04
Congratulations!
Your GeForce RTX 2070 SUPER graphics card is now ready to
use!
Note: If you have any questions about your NVIDIA product you can Chat live with
0800-404-7747 (UK).
|
13
CONFIGURING SLI
05
CONFIGURING SLI (NVLink)
SLI is a revolutionary technology developed by NVIDIA that
allows you to connect identical GeForce graphics cards
together to deliver increased performance.
You can enable SLI by either clicking on the SLI-capable
system balloon in the system tray or by going to the NVIDIA
Control Panel.
Note: You must have an SLI-ready motherboard and two identical SLI-ready GeForce RTX
2070 SUPER graphics cards installed in your PC in order to enable SLI.
Accessing the NVIDIA Control Panel
To access the NVIDIA Control Panel, you can right-click the Windows desktop
and select NVIDIA Control Panel from the menu. Other ways to access the
NVIDIA Control Panel depends on the operating system.
|
14
CONFIGURING SLI

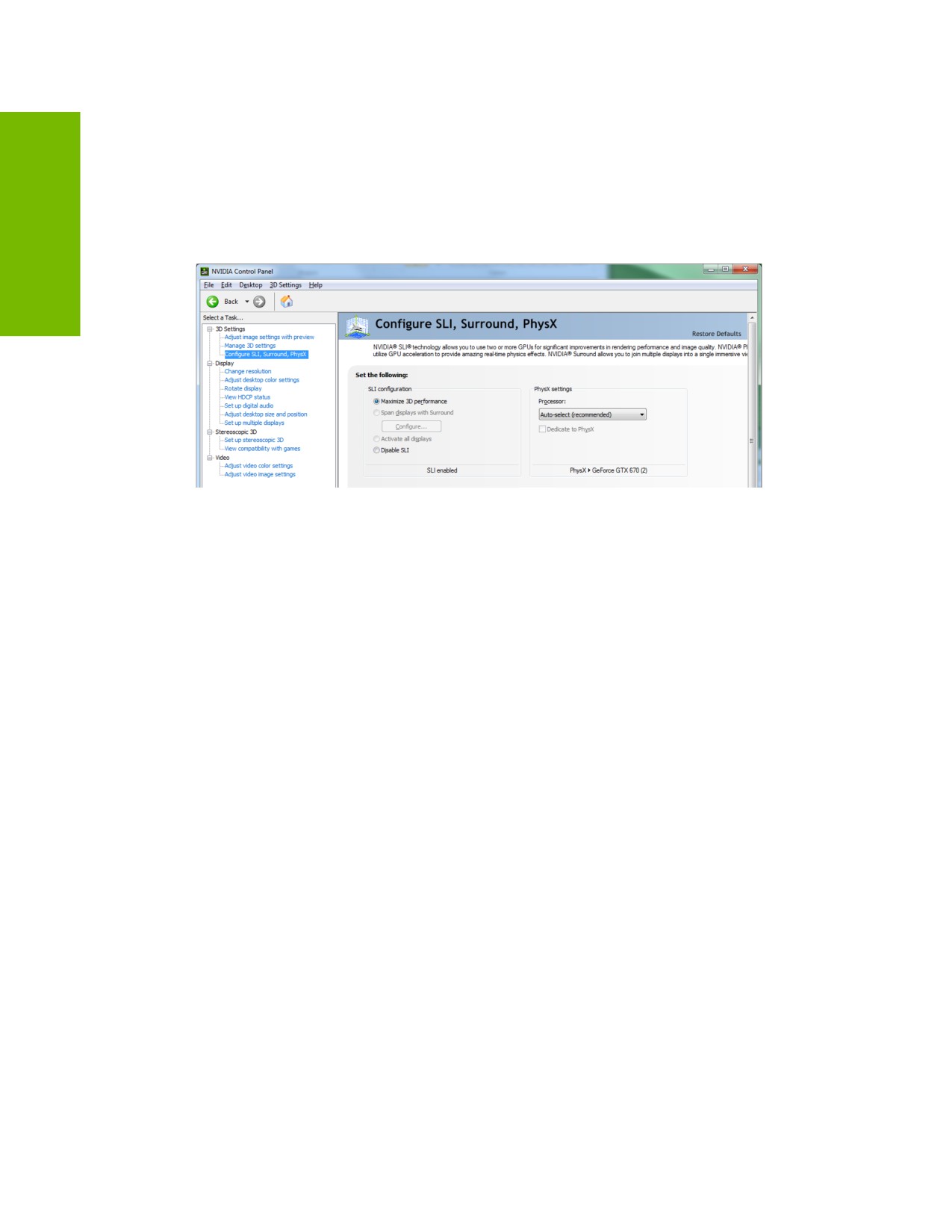

Enabling / Disabling SLI
1 Once you have the NVIDIA Control Panel open, click on Configure SLI,
05
Surround, PhysX in the left task pane.
2 Enable SLI by making sure the Disable SLI button is not checked.
|
15
06
CONFIGURING HDMI
Connecting HDTV via HDMI allows you to output both digital
audio and video from your graphics card to an HDTV.
Enabling Audio Over HDMI
If you are connecting to your display over HDMI, you may need to set the HDMI
output to be your default audio device.
1 Select Start Control Panel Sound.
2 On the Playback tab, select your HDMI display and select
3 Set Default.
Congratulations! Your GeForce graphics card(s) is now ready to use!
For detailed instructions on using the NVIDIA Control Panel, consult the Control
click on Control Panel User’s Guide to download the User’s Guide).
|
16
07
FEATURES
>
NVIDIA GeForce Experience™: Ensures the best gaming experience, the day a
game releases, by automatically updating your game-ready drivers. Plus, it
allows users to optimize the game settings to their PC with a single click.
GeForce Experience also includes SHARE that lets you capture and share
your favorite gaming moments.
>
Multi-Frame sampled Anti-Aliasing (MFAA): MFAA delivers a 30%
performance boost while maintaining smooth, high-quality edges by
alternating sample calculations across each frame and each pixel.
>
Dynamic Super Resolution (DSR): This innovative feature can deliver 4 K
fidelity to 1080p displays for exceptional detail and image quality.
>
Voxel Global Illumination (VXGI): Part of the NVIDIA GameWorks™ library for
developers, VXGI accelerates dynamic lighting effects for a truly immersive,
cinematic experience.
>
NVIDIA GameStream™1: GeForce GPU support for NVIDIA PhysX technology,
enabling a totally new class of physical gaming interaction for a more
dynamic and realistic experience with GeForce.
>
NVIDIA G-SYNC™-Ready2: NVIDIA G-SYNC monitors feature revolutionary
NVIDIA technology that eliminates screen tearing while also reducing input
lag. The result is a smoothest, fastest, and most responsive gaming monitor
experience ever seen.
1 NVIDIA GameStream requires an NVIDIA GameStream-ready device
2 NVIDIA G-SYNC requires an NVIDIA G-SYNC-ready monitor
|
17
Features
>
Microsoft® DirectX® 12 Support: Support for the latest Microsoft DirectX API
to enable next-generation gaming.
07
>
NVIDIA GPU Boost™ 3.0: Dynamically maximizes clock speeds based on
workload and allows enthusiast-class controls such as temperature target
and fan controls, extra over-voltage headroom, and optimizations for water-
cooling solutions. This allows gamers to push performance to new levels.
>
NVIDIA Adaptive Vertical Sync: Dynamically enable vertical sync based on
your current frame rates for the smoothest gaming experience.
>
NVIDIA CUDA™: Unlock the power of the GPU’s processor cores to accelerate
demanding tasks such as video transcoding, physics simulation, ray tracing,
and more, delivering incredible performance improvements over traditional
CPUs.
>
DisplayPort: Drive the latest DisplayPort panels with support for resolutions
up to 4096x2160.
>
HDMI: Support for HDMI includes 4K resolution at 60 Hz, GPU-accelerated
Blu-ray 3D support, x.v.Color, HDMI Deep Color, and 7.1 digital surround
sound.
>
PCI Express 3.0: This card is designed for the new PCI Express 3.0 bus
architecture, offering the highest data transfer speeds for the most
bandwidth-hungry games and 3D applications. It also maintains backwards
compatibility with existing PCI Express motherboards for the broadest
support.
|
18
08
COMPLIANCES
The NVIDIA GeForce RTX 2070 SUPER graphics card is compliant with the
following regulations:
> Federal Communications Commission (FCC)
> Industry Canada (IC)
> Conformité Européenne (CE)
> Australian Communications and Media Authority (C-tick)
> Voluntary Control Council for Interference (VCCI)
> Bureau of Standards Metrology and Inspection (BSMI)
> Korean Certification (KC)
> Underwriters Laboratories (UL, cUL)
> ISO 9241-307 Visual Display Ergonomics
|
19
Compliances
UNITED STATES
Federal Communications Commission (FCC)
08
NVIDIA CORP
Model PG180
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including any interference
that may cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
> Reorient or relocate the receiving antenna.
> Increase the separation between the equipment and receiver.
> Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
> Consult the dealer or an experienced radio/TV technician for help.
FCC Warning: The FCC requires that you be notified that any changes or
modifications to this device not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
|
20
Compliances
UNDERWRITERS LABORATORIES (UL)
08
CANADA
Innovation, Science and Economic Development Canada (ISED)
CAN ICES-3(B)/NMB-3(B)
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
EUROPEAN UNION
European Conformity; Conformité Européenne (CE)
Santa Clara, California, USA
This device bears the CE mark accordance with Directive 2014/30/EU and
2011/65/EU.
This device complies with the following Directives:
> EMC Directive 2014/30/EU
> RoHS Directive 2011/65/EU for hazardous substances
A copy of the Declaration of Conformity to the essential requirements may be obtained
directly from NVIDIA GmbH (Floessergasse 2, 81369 Munich, Germany).
|
21
Compliances
JAPAN
Voluntary Control Council for Interference (VCCI)
08
Japan RoHS Material Content Declaration
日本工業規格JIS C 0950:2008により、2006年7月1日以降に販売される特定分野の電気および電子機器に
ついて、製造者による含有物質の表示が義務付けられます。
機器名称：グラフィックカード
特定化学物質記号
主な分類
Pb
Hg
Cd
Cr(VI)
PBB
PBDE
PCBボード
0
0
0
0
0
0
パッシブ電子部品
除外項目
0
0
0
0
0
アクティブ電子部品
除外項目
0
0
0
0
0
ケーブル/コネクター
除外項目
0
0
0
0
0
プロセッサー
0
0
0
0
0
0
メモリ
0
0
0
0
0
0
機械部品
除外項目
0
0
0
0
0
はんだ付け材料
0
0
0
0
0
0
フラックス、クリームはんだ、ラベル、
0
0
0
0
0
0
その他消耗品
注：
1.「0」は、特定化学物質の含有率が日本工業規格JIS C 0950:2008に記載されている含有率基準値より低
いことを示します。
2.「除外項目」は、特定化学物質が含有マークの除外項目に該当するため、特定化学物質について、日
本工業規格JIS C 0950:2008に基づく含有マークの表示が不要であることを示します。
|
22
Compliances
3.「0.1wt%超」または「0.01wt%超」は、特定化学物質の含有率が日本工業規格JIS C 0950:2008
に記載されている含有率基準値を超えていることを示します。
08
A Japanese regulatory requirement, defined by specification JIS C 0950: 2008, mandates that
manufacturers provide Material Content Declarations for certain categories of electronic products offered
for sale after July 1, 2006.
Product Model Number: Graphic card
Symbols of Specified Chemical Substance
Major Classification
Pb
Hg
Cd
Cr(VI)
PBB
PBDE
PCB
0
0
0
0
0
0
Passive components
Exempt
0
0
0
0
0
Active components
Exempt
0
0
0
0
0
Cables/Connectors
Exempt
0
0
0
0
0
Processor
0
0
0
0
0
0
Memory
0
0
0
0
0
0
Mechanicals
Exempt
0
0
0
0
0
Soldering material
0
0
0
0
0
0
Flux, Solder Paste, label and other
0
0
0
0
0
0
consumable materials
Notes:
1. “0” indicates that the level of the specified chemical substance is less than the threshold level specified
in the standard, JIS C 0950: 2008.
2. “Exempt” indicates that the specified chemical substance is exempt from marking and it is not required
to display the marking for that specified chemical substance per the standard, JIS C 0950: 2008.
3. “Exceeding 0.1wt%” or “Exceeding 0.01wt%” is entered in the table if the level of the specified chemical
substance exceeds the threshold level specified in the standard, JIS C 0950: 2008
|
23
Compliances
KOREA
Radio Research Agency (RRA)
08
R-R-NVA-PG160
Korea RoHS Material Content Declaration
확인 및 평가 양식은 제품에 포함 된 유해 물질의 허용 기준의 준수에 관한
110181-
상호 :
앤비디아홍콩홀딩즈리미티드( 영업소)
법인등록번호
0036373
문 준비
120-84-
대표자성명
카렌테레사번즈
사업자등록번호:
06711
주소
서울특별시 강남구 영동대로 511, 2101호 ( 삼성동, 코엑스무역타워)
제품 내용
제품의 종류
해당없음
제품명(규격)
해당없음
세부모델명(번호):
해당없음
제품출시일
해당없음
제품의 중량
해당없음
제조, 수입업자
앤비디아
엔비디아의 그래픽 카드제품은 전기 전자제품 및 자동차의 자원순환에 관한 법률 시행령 제 11조 제 1항에 의거한 법
시행행규칙 제 3조에에따른 유해물질함유 기준을 확인 및 평가한 결과, 이를 준수하였음을 공표합니다.
구비서류 : 없음
작성방법
① 제품의 종류는 "전기.전자제품 및 자동차의 자원순환에관한 법률 시행령" 제 8조 제 1항 및 제 2항에 따른 품목별로
구분하여 기재합니다.
② 전기 전자 제품의 경우 모델명 (번호), 자동차의 경우, 제원관리번호를 기재합니다.
③ 해당제품의 제조업자 또는 수입업자를 기재합니다.
|
24
Compliances
Confirmation and Evaluation Form Concerning the Adherence to Acceptable Standards of Hazardous
Materials Contained in Products
NVIDIA HongKong
Corporate Identification
110181-
08
Company Name:
Holding Ltd.Korea
Statement
Number:
0036373
branch
Prepared
Name of Company
Business Registration
120-84-
by
Karen Theresa Burns
Representative:
Number:
06711
Address
2788 San Tomas Expressway, Santa Clara, CA 95051
Product Information
Product Category:
N/A
Name of Product:
N/A
Detailed Product Model
Date of first market
N/A
N/A
Name (Number):
release:
Manufacturer and/or
Weight of Product:
N/A
NVIDIA Corporation
Importer:
This for is publicly certify That NVIDIA Company has undergone the confirmation and evaluation
procedures for the acceptable amounts of hazardous materials contained in graphic card according to the
regulations stipulated in Article 3 of the ‘Status on the Recycling of Electrical and Electronic Products, and
Automobiles’ and that company has graphic card adhered to the Enforcement Regulations of Article 11,
Item 1 of the statute.
Attachment: None
＊Preparing the Form
① Please indicate the product category according to the categories listed in Article 8, Items 1and 2 of the
‘ Enforcement Ordinance of the Statute on the Recycling of Electrical, Electronic and Automobile
Materials’
② For electrical and electronic products, please indicate the Model Name (and number). For
automobiles, please indicate the Vehicle Identification Number.
③ Please indicate the name of manufacturer and/or importer of the product.
AUSTRALIA/NEW ZEALAND
Australian Communications and Media Authority
This product meets the applicable EMC requirements for Class B, I.T.E equipment and
applicable radio equipment requirements
|
25
Compliances
TAIWAN
Bureau of Standards, Metrology & Inspection (BSMI)
08
Taiwan RoHS Material Content Declaration
限用物質含有情况標示聲明書
Declaration of the presence condition of the Restricted Substances Marking
設備名稱：繪圖卡
Equipment Name: Graphic Card
限用物質及其化學符號
單元
Restricted substances and its chemical symbols
Parts
铅
汞
镉
六價铬
多溴聯苯
多溴二苯醚
(Pb )
(Hg)
(Cd)
(Cr(VI))
(PBB)
(PBDE)
PCB板
O
O
O
O
O
O
PCB
結構件以及風扇
-
O
O
O
O
O
Mechanical parts and Fan
連接器
-
O
O
O
O
O
Connectors
被動電子零件
-
O
O
O
O
O
Passive components
處理器
O
O
O
O
O
O
Processor
主動電子零件
-
O
O
O
O
O
Active components
內存
O
O
O
O
O
O
Memory
線材
-
O
O
O
O
O
Cables
焊接金屬
O
O
O
O
O
O
Soldering material
助焊劑，錫膏，標籤及耗材
Flux, Solder Paste, label and
O
O
O
O
O
O
other consumable materials
備考1：O：系指該限用物質未超出百分比含量基準值
Note 1： O：indicates that the percentage content of the restricted substance does not exceed the percentage of
reference value of presence.
備考2： -：系指該项限用物質为排外项目。
Note 2：-：indicates that the restricted substance corresponds to the exemption.
此表中所有名稱中含 “-” 的部件均符合歐盟 RoHS 立法。
|
26
Compliances
All parts named in this table with an “-” are in compliance with the European Union’s RoHS Legislation.
注：環保使用期限的參考標識取决與產品正常工作的温度和濕度等條件
Note: The referenced Environmental Protection Use Period Marking was determined according to normal operating
08
use conditions of the product such as temperature and humidity.
CHINA
China RoHS Material Content Declaration
产品中有害物质的名称及含量
The Table of Hazardous Substances and their Content
根据中国《电器电子产品有害物质限制使用管理办法》
as required by Management Methods for Restricted Use of Hazardous Substances in Electrical and
Electronic Products
有害物质
Hazardous Substances
部件名称
多溴联
多溴二
Parts
铅
汞
镉
六价铬
苯
苯醚
(Pb)
(Hg)
(Cd)
(Cr(VI))
(PBB)
(PBDE)
PCB板
O
O
O
O
O
O
PCB
结构件以及风扇
X
O
O
O
O
O
Mechanical parts and Fan
连接器
X
O
O
O
O
O
Connectors
被动电子零件
X
O
O
O
O
O
Passive components
处理器
O
O
O
O
O
O
Processor
主动电子零件
X
O
O
O
O
O
Active components
内存
O
O
O
O
O
O
Memory
线材
X
O
O
O
O
O
Cables
焊接金属
O
O
O
O
O
O
Soldering material
助焊剂，锡膏，标签及耗材
Flux, Solder Paste, label and other
O
O
O
O
O
O
consumable materials
本表格依据SJ/T 11364-2014 的规定编制
The table according to SJ/T 11364
O：表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 标准规定的限量要求以下。
|
27
Compliances
O: Indicates that this hazardous substance contained in all of the homogeneous materials for this
part is below the limit requirement in GB/T 26572.
X：表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 标准规定的限量要求。
X: Indicates that this hazardous substance contained in at least one of the homogeneous materials used
08
for this part is above the limit requirement in GB/T 26572.
此表中所有名称中含 “X” 的部件均符合欧盟 RoHS 立法。
All parts named in this table with an “X” are in compliance with the European Union’s RoHS
Legislation.
注：环保使用期限的参考标识取决于产品正常工作的温度和湿度等条件
Note: The referenced Environmental Protection Use Period Marking was determined according to normal
operating use conditions of the product such as temperature and humidity.
INDIA
India RoHS Material Content Declaration
This product, as well as its related consumables and spares, complies with the
reduction in hazardous substances provisions of the “India E-waste
(Management and Handling) Rule 2016”. It does not contain lead, mercury,
hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl
ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium,
except for where allowed pursuant to the exemptions set in Schedule 2 of the
Rule.
|
28
Notice
The information provided in this specification is believed to be accurate and reliable as of the date provided. However,
NVIDIA Corporation (“NVIDIA”) does not give any representations or warranties, expressed or implied, as to the accuracy
or completeness of such information. NVIDIA shall have no liability for the consequences or use of such information or for
any infringement of patents or other rights of third parties that may result from its use. This publication supersedes and
replaces all other specifications for the product that may have been previously supplied.
NVIDIA reserves the right to make corrections, modifications, enhancements, improvements, and other changes to this
specification, at any time and/or to discontinue any product or service without notice. Customer should obtain the latest
relevant specification before placing orders and should verify that such information is current and complete.
NVIDIA products are sold subject to the NVIDIA standard terms and conditions of sale supplied at the time of order
acknowledgement, unless otherwise agreed in an individual sales agreement signed by authorized representatives of
NVIDIA and customer. NVIDIA hereby expressly objects to applying any customer general terms and conditions with regard
to the purchase of the NVIDIA product referenced in this specification.
NVIDIA products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life
support equipment, nor in applications where failure or malfunction of the NVIDIA product can reasonably be expected to
result in personal injury, death or property or environmental damage. NVIDIA accepts no liability for inclusion and/or use
of NVIDIA products in such equipment or applications and therefore such inclusion and/or use is at customer’s own risk.
NVIDIA makes no representation or warranty that products based on these specifications will be suitable for any specified
use without further testing or modification. Testing of all parameters of each product is not necessarily performed by
NVIDIA. It is customer’s sole responsibility to ensure the product is suitable and fit for the application planned by customer
and to do the necessary testing for the application in order to avoid a default of the application or the product. Weaknesses
in customer’s product designs may affect the quality and reliability of the NVIDIA product and may result in additional or
different conditions and/or requirements beyond those contained in this specification. NVIDIA does not accept any liability
related to any default, damage, costs or problem which may be based on or attributable to: (i) the use of the NVIDIA product
in any manner that is contrary to this specification, or (ii) customer product designs.
No license, either expressed or implied, is granted under any NVIDIA patent right, copyright, or other NVIDIA intellectual
property right under this specification. Information published by NVIDIA regarding third-party products or services does not
constitute a license from NVIDIA to use such products or services or a warranty or endorsement thereof. Use of such
information may require a license from a third party under the patents or other intellectual property rights of the third
party, or a license from NVIDIA under the patents or other intellectual property rights of NVIDIA. Reproduction of
information in this specification is permissible only if reproduction is approved by NVIDIA in writing, is reproduced without
alteration, and is accompanied by all associated conditions, limitations, and notices.
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER
DOCUMENTS (TOGETHER AND SEPARATELY, “MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES NO
WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY
DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR
PURPOSE. Notwithstanding any damages that customer might incur for any reason whatsoever, NVIDIA’s aggregate and
cumulative liability towards customer for the products described herein shall be limited in accordance with the NVIDIA
terms and conditions of sale for the product.
VESA DisplayPort
DisplayPort and DisplayPort Compliance Logo, DisplayPort Compliance Logo for Dual-mode Sources, and DisplayPort
Compliance Logo for Active Cables are trademarks owned by the Video Electronics Standards Association in the United
States and other countries.
HDMI
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC.
OpenCL
OpenCL is a trademark of Apple Inc. used under license to the Khronos Group Inc.
Trademarks
NVIDIA, the NVIDIA logo, NVIDIA CUDA, NVIDIA GeForce, GeForce RTX, GeForce Experience, NVIDIA NVLink, GigaThread,
Lumenex, PureVideo, and PhysX Technology are trademarks or registered trademarks of NVIDIA Corporation. Other
company product names may be trademarks of the respective companies with which they are associated.
Copyright
