JAC-J7. Service manual - part 9





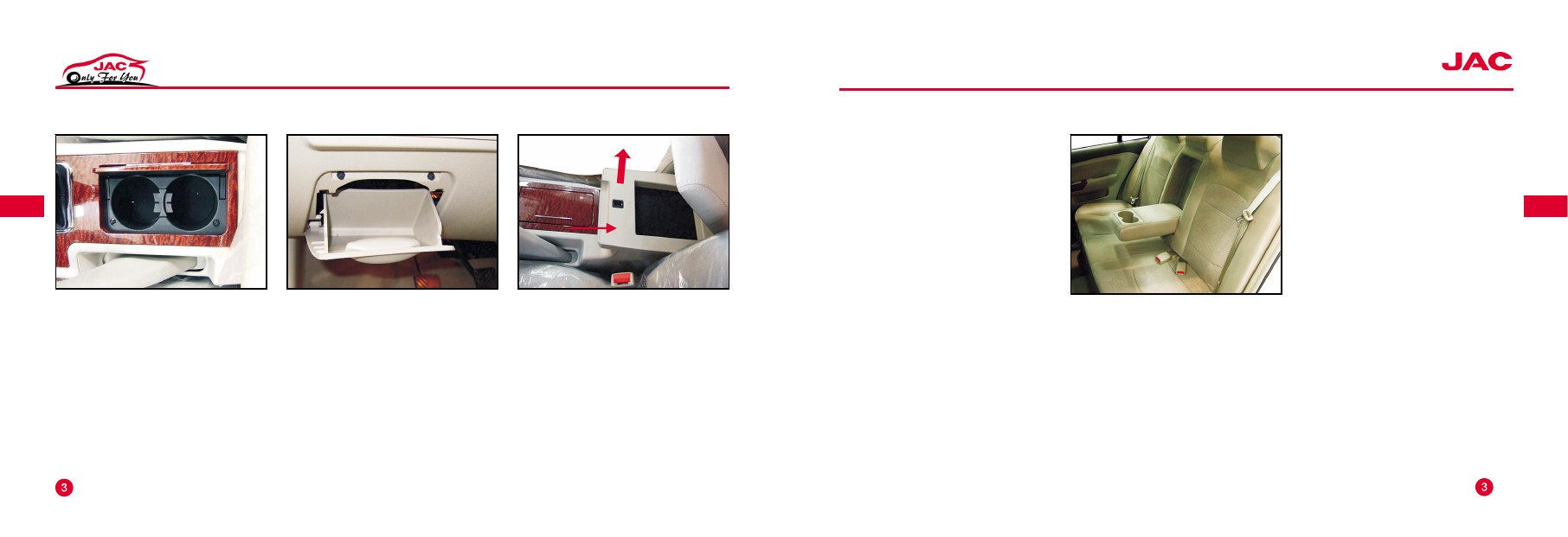

Cup support

The cup support locates at the auxiliary
facia console and rear seat armrest. To
use the front cup support, press the
bright stripe ornament part of the cup
support protective cover and then
loosen, the cover will open automatically.
To use the rear cup support, pull down
the central handle at rear seat (refer to
the next page 野Rear Seat Armrest冶.

Storage box at diver爷s side

The storage box at driver爷s side locates
at the console at the left side of steering
wheel. It is used as the interior fuse
check mouth as well. To use it, just pull
out the storage box or take it out.

Storage area of central control console

The central control console has two in鄄
dependent storage areas and the upper
storage hatch is also an armrest. To
open the upper storage hatch, just pull
up the armrest cover plate at the upper
layer. To open the lower part storage
hatch, just lift the lower starting wrench
and raise the hatch cover. To close the

-42

storage hatch, press down the cover un鄄
til it is tightly locked.

Rear seat armrest

There are two cup supports on the rear
seat armrest. To use them, pull down
the armrest from the backrest of the rear
seat.

-43

MO TORS

-01

Chapter IV Vehicle Equipment

Temperature control

4-02

Rear window and exterior view mirror
defroster

4-06

Air outlet control

4-07

Passenger compartment air cleaner

4-07

Reverse radar system

4-08

Interior lighting

4-10

Hi-fi system

4-11

Rear windscreen antenna

4-12

Sunroof

4-12

Sunroof vanity mirror

4-12

Airbag system

4-13

Accessory power supply socket

4-14

Sun roof

4-15

Front seat pre-tension type safety belt

4-16

Rear seat three-point type safety belt

4-16

Anti-theft system

4-17

MO TORS

-02

Air conditioner

Automatic temperature control system

Your vehicle is equipped with automatic
temperature control system. This system
allows you to control the refrigeration,
heating and ventilation of vehicle.

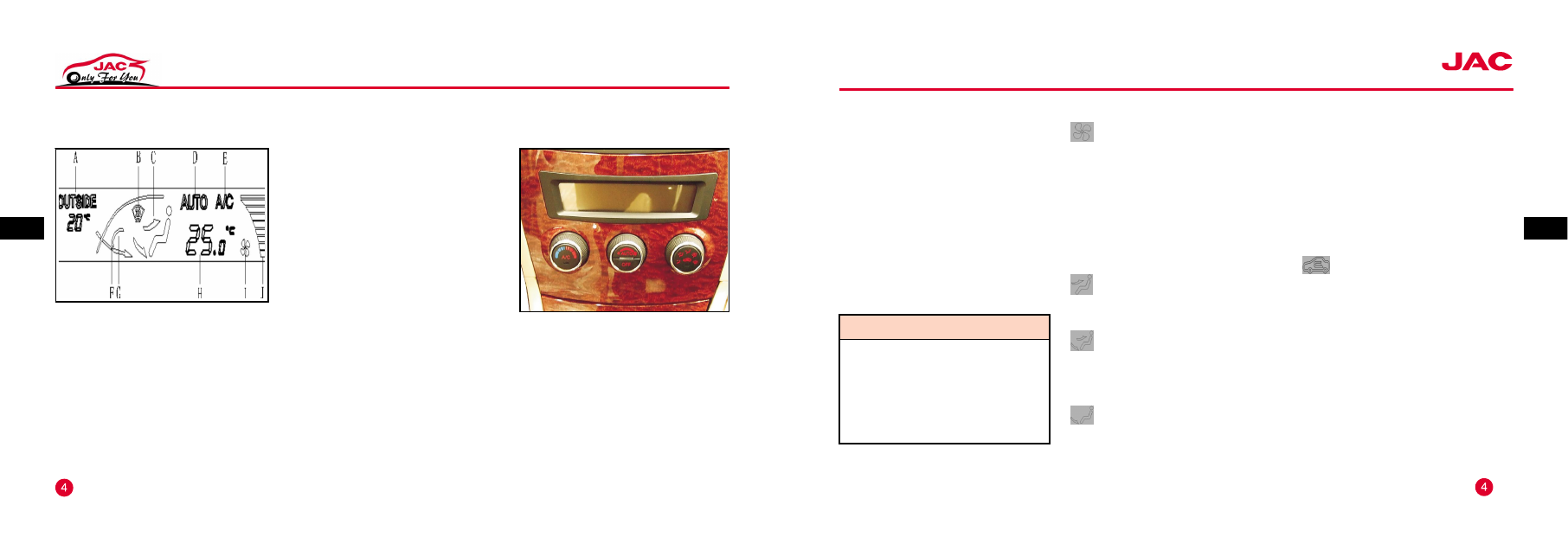

Below is the display screen of tempera鄄
ture control system: A. External temper鄄
ature (ambient temperature)
B. Defroster indicator

C. Air allocation mode indicator
D. AUTO mode indicator
E. Compressor switch indicator
F. External circulation mode indicator
G. Internal circulation mode indicator
H. Selected temperature (internal tem鄄
perature)
I. Fan working indicator
J. Fan speed indicator

Automatic operation
Set automatic operation as following:

AUTO (automatic): press AUTO button
to enable automatic control over internal
air temperature, air delivery mode and
fan speed. Then, the AUTO mode indi鄄
cator will present on the display.
OFF: press this button to shut down the
system.
Set the desired temperature according

to the following procedures:
1. Press AUTO button.
2. Turn the temperature control button
until the desired temperature appears
on the display screen. You can set the
desired temperature between 17益 and
32益.
3. Turn the knob clockwise, you can
raise the temperature by 0.5益. Turn the
knob counterclockwise, you can reduce
the desired temperature by 0.5益.

Manual operation

(Fan) Turn the fan control button

(center control button) clockwise, you
can increase the fan speed; anticlock鄄
wise could reduce the fan speed. When
this button is turned, AUTO mode will
be cancelled. You can select the fol鄄
lowing modes by turning the control but鄄
ton near the second driver's seat:

(Instrument panel mode): this mode

will allow the air to flow to the instrument
panel air outlet.

(Double -function mode): this mode

will allow about half air to flow to instru鄄
ment panel air outlet and the rest air to
flow to the floor air outlet.

(Floor mode): this mode will allow

most air to flow to the floor air outlet. If
your vehicle is equipped with rear air

outlet, a portion of airflow will be guided
to it as well. Make sure there is no obsta鄄
cle under the front seat so as to allow
clear airflow to the compartment tail.
Demisting mode can be selected by
mode button. For information on demist鄄
ing and defrosting, refer to the following
in this chapter.

(Internal circulation mode): This

mode will prevent external air and ab鄄
normal taste entering the vehicle or
raise or reduce internal air temperature
faster.
Press this button, you can start or shut
down internal circulation mode.
Long term use of internal circulation
mode will result in mist on the window. If
there is mist on the window, please se鄄
lect defrosting mode.

Notes

Don't cover the right sunshine sensor at
right defrosting bar rack on the instru鄄
ment panel. To learn about the sun鄄
shine sensor in details, refer to the fol鄄
lowing section of Sensor in this chapter.

-03

MO TORS

A/C (air conditioner): press this button,
you can override automatic control sys鄄
tem and shut down or start the air con鄄
ditioner. When the A/C button is
pressed, the indicator lamp on the dis鄄
play will be on to indicate the air condi鄄
tioning system has started.
Press this button again, you can shut
down the air conditioning system; or,
press OFF button again, you can shut
down overall system. In the case of
burning hot days, open the window to
have the hot air inside the vehicle es鄄
cape and then close the window. This
will help to shorten required time for ve鄄
hicle refrigeration. This also helps to in鄄
crease system operation efficiency.
To allow quicker refrigeration in burning
hot days, press AUTO button and this

system will access internal circulation
mode automatically. If the said equip鄄
ment is used at the same time for a long
time, it will cause interior air excessively
dry. To prevent the above situation,
please shut down internal circulation
mode after interior air cools off.

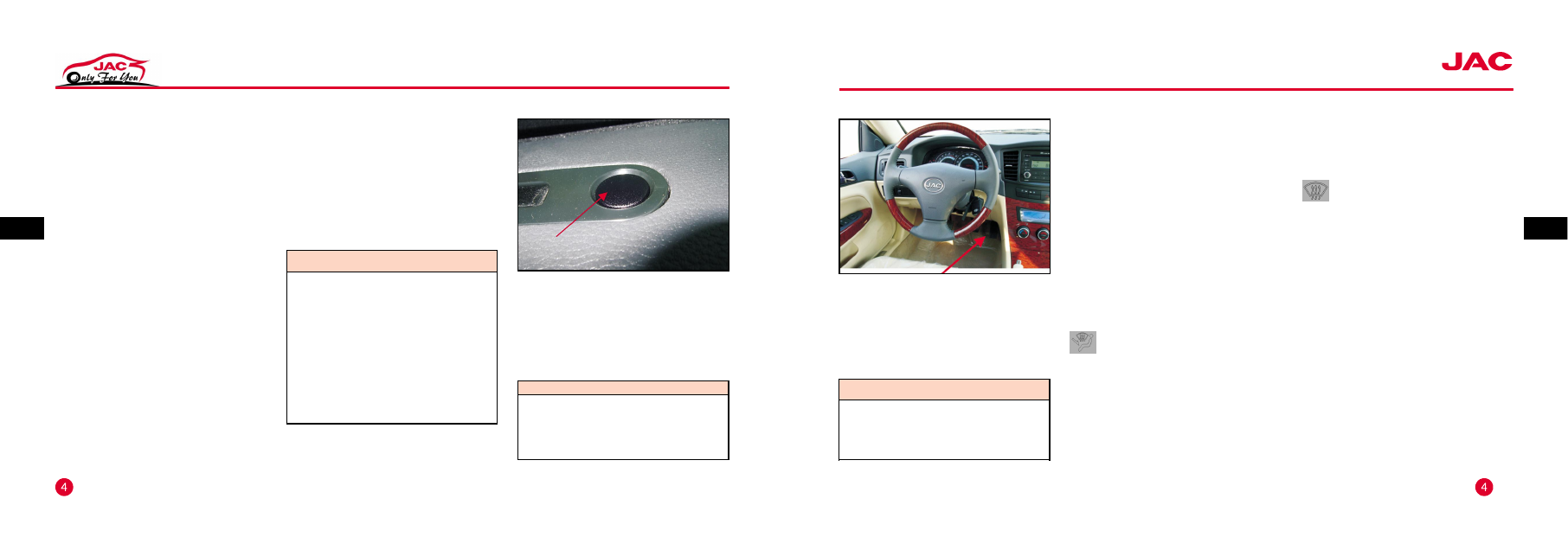

Sensor

The sunshine sensor monitors the quan鄄
tity of sunshine radiation and performs
necessary adjustment on temperature,
fan speed and air delivery system bas鄄
ing on this information to maintain the
selected temperature.

Friendly Tips

As the air conditioning system may re鄄
move moisture, when the engine is
idling or the vehicle is running at low
speed, the indicated temperature may
be impacted by heat of road surface or
engine. Therefore, the indicated temper鄄
ature is accurate only when vehicle
speed exceeds 40km/h.

-04

Friendly Tips

Don't cover the sunshine sensor near
the front windscreen at middle of the
instrument panel, otherwise, the system
cannot operate normally.

There is an interior temperature sensor
in the lower left side plate of instrument
desk, which reads the interior air tem鄄
perature and helps to establish ventila鄄
tion system demand under AUTO mode.

Demisting and defrosting
The fog on inside surface of window is
caused by the condensation of exces鄄
sive moisture on the cool window glass.
This can be relieved to the most extent
if temperature control system is used
correctly. Two modes can be used to
demist and defrost the front windscreen.
Demisting mode allows window demist鄄
ing and desiccation while defrosting
mode allows faster demisting or de鄄
frosting of front windscreen.

(Demisting mode): this mode will

allow most air to flow to the front wind鄄
screen and floor air outlet. Little airflow
will be guided to the external air outlet
of side window. Perform the following
operation to quicken side window
demisting.

1. Select double-function mode.
2. Select the maximum fan speed.
3. Press A/C button.
4. Select temperature.

(Defrosting mode): this mode will

allow the air to flow to the external air
outlet of front windscreen and side win鄄
dow. Perform the following operation to
quicken the front windscreen defrosting:
1. Select defrosting mode.
2. Select the maximum temperature.
3. Select the maximum fan speed.
Start your vehicle after all windows are
clear.
To cancel defrosting function, turn the
mode control knob or push the AUTO
button. If you push the AUTO button, the
system will perform automatic operation.

-05

Friendly Tips

Don't cover the temperature sensor,
otherwise the system cannot operate
normally.
